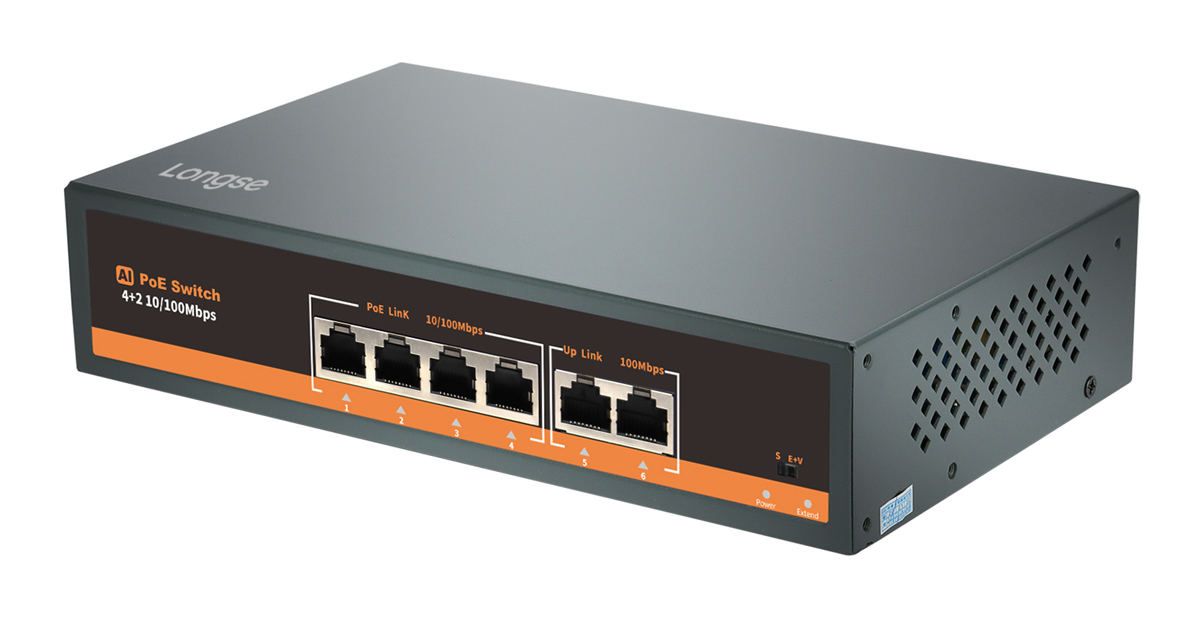

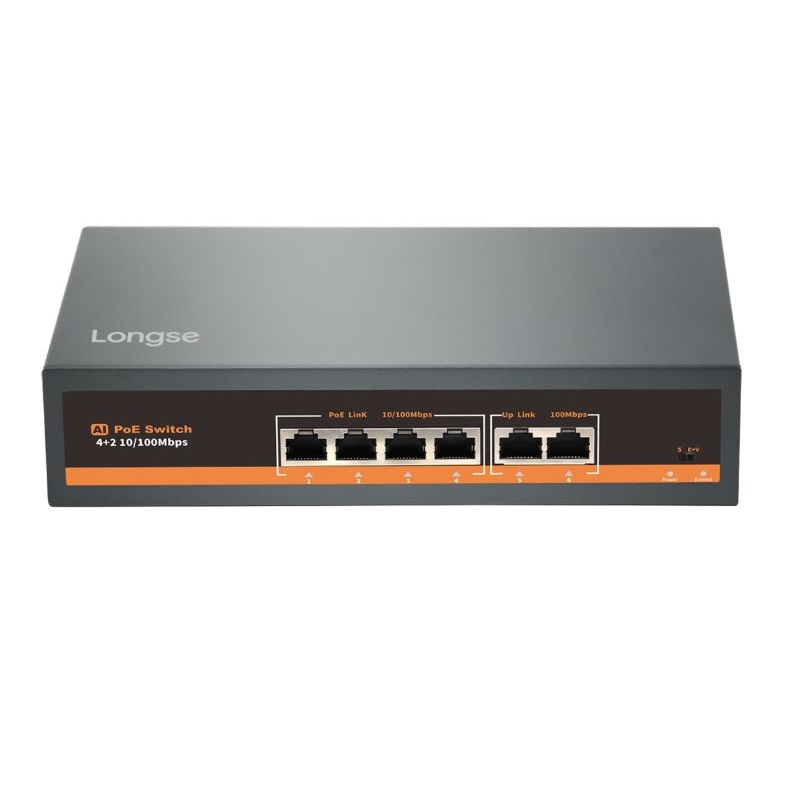

LONGSE PoE switch HT42FA με 4x LAN & 2x WAN θύρες, 10/100Mbps

Σημεία ενδιαφέροντος προϊόντος
-4x PoE LAN θύρες 10/100Mbps
-2x WAN θύρες 10/100Mbps

Τεχνικά χαρακτηριστικά
Network Connector
-Network Port: 4x 10/100mbps POE port, 2x 10/100mbps UP Link port
-Transmission Distance: Extend switch is default OFF state (1~4 port): 100m, Extend switch is ON state (1~4 port): 250m, WAN1/2 port: 100m
-Transmission Medium: Cat5/5e/6 standard network cable

Network Switch
-Network Standard: IEEE802.3/10BASE-T Ethernet, IEEE802.3u/100BASE-TX Ethernet, IEEE802.3x Flow Control, IEEE802.3af, IEEE802.3at
-Forwarding Mode: Store and forward
-Forwarding Rate: 10BASE-T:14880PPS/port, 100BASE-T:148800pps/port
-Network Medium: 10/100BASE-TX:5 class and above non shielded twisted pair
-MAC address lis: 1K
-Backplane bandwidth: 1.6Gbps
-PoE Standard: IEEE 802.3af, IEEE 802.3at

Power Over Ethernet
-PoE Power Supply Type: End-Span (1/2+,3/6-)
-PoE Power Consumption: af, at Adaptive (every port)
-Port Function: Power priority mechanism, fast and forward, MAC automatic learning and aging, IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode

General

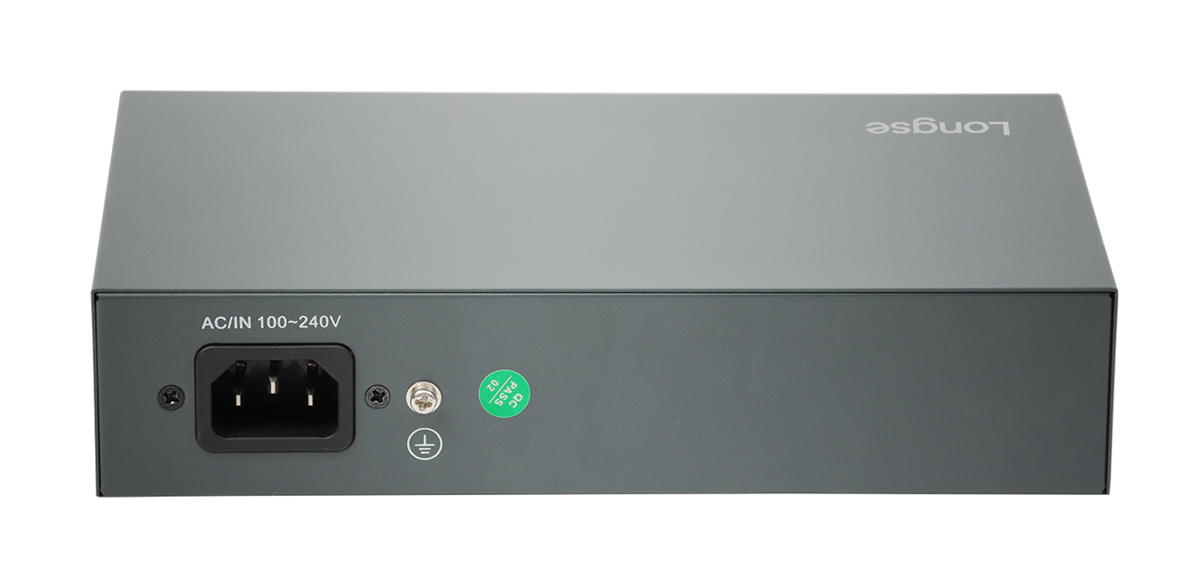

-Power Adapter Voltage: Input: 110-240V/AC 50-60Hz
-The maximum power supply machine: 78W (52V 1.5A)
-LED Indicator: LINK/ACT.100Mbps, POE Status Indicator, Power indicator, Extender
-Working temperature -10 °C ~ 55 °C
-Humidity: 5%-90%, non-condensing
-ESD: Air discharge: 8KV, Contact discharge: 4KV
-Surge Protection: Common mode/RJ45 port: 4KV, Differential mode/RJ45 port: 2KV, Common mode/Power board: 2KV, Differential mode/Power board: 1KV
-Dimension (LxWxH): 200x120x40mm
-Weight: 1kg

Περιεχόμενα συσκευασίας
-PoE switch
-Καλώδιο τροφοδοσίας
-Παρελκόμενα εγκατάστασης (βίδες, βάσεις κλπ)
-Εγχειρίδιο χρήσης
